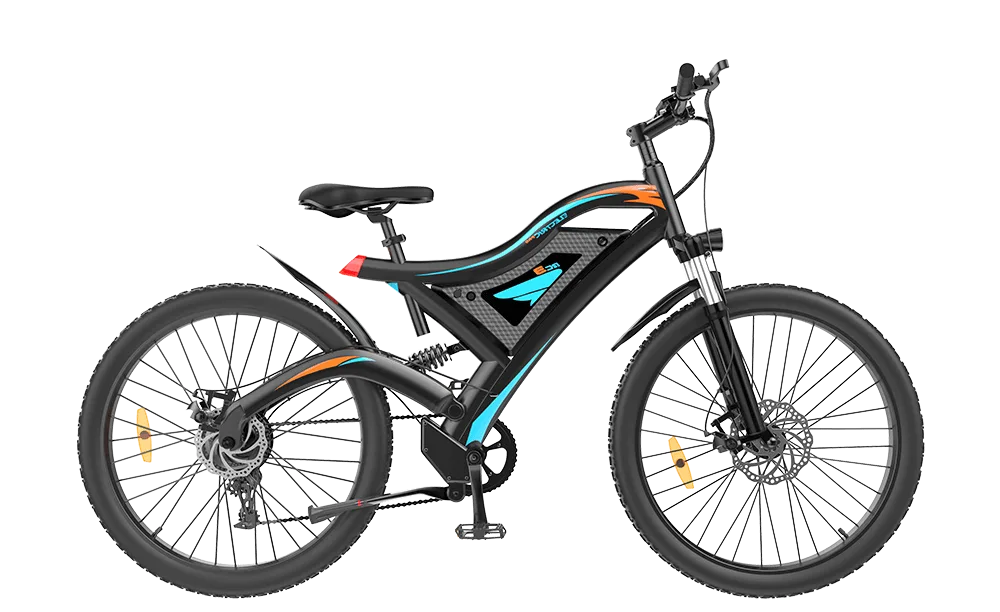

AOSTIR S05 Electric Mountain Bicycle – 500W – 48V 11.6Ah 500Wh – 26×2.1 – Full Suspension MTB
$899.00
AOSTIR S05 Electric Mountain Bicycle – 500W – 48V 11.6Ah 500Wh – 26×2.1 Full Suspension MTB – 28MPH. Classic curved frame – 500W rear hub – 48V 11.6Ah 500Wh Samsung battery as seen label Rated 48V 11.6Ah 500Wh – POWER + LOCK + CHARGE – 28MPH – 25 mile throttle / 50 mile PAS – 26×2.1 INNOVA as seen – Full Suspension front + rear coil – Shimano 21-speed – Disc 160mm.
AOSTIR S05 ELECTRIC MOUNTAIN BICYCLE – 500W – 48V 11.6Ah 500Wh – 26×2.1 – FULL SUSPENSION MTB
| AOSTIR S05 ELECTRIC MOUNTAIN BICYCLE – COMPLETE SPECIFICATION SHEET | |
|---|---|
| 1. OVERVIEW & DESIGN | |
| Product Name | AOSTIR S05 Electric Mountain Bicycle – 500W – 48V 11.6Ah 500Wh – 26×2.1 – Full Suspension MTB |

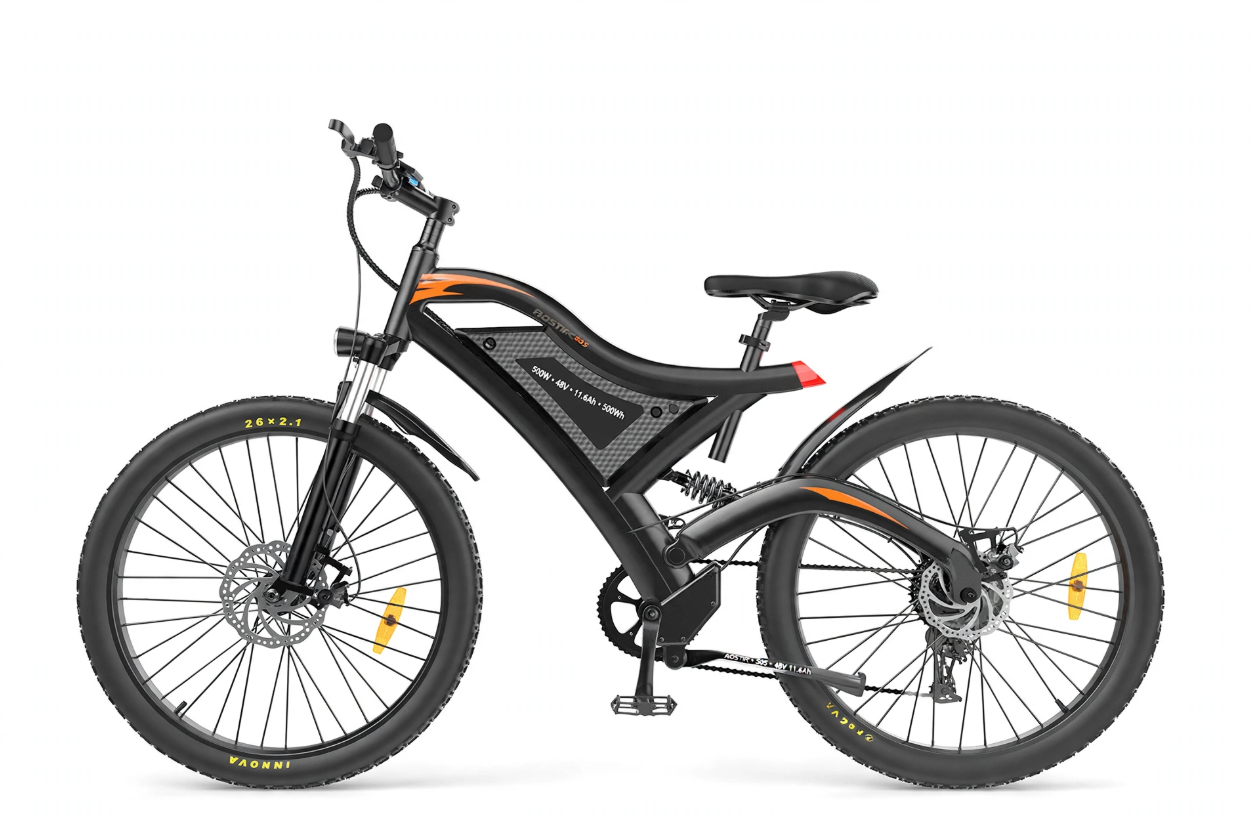

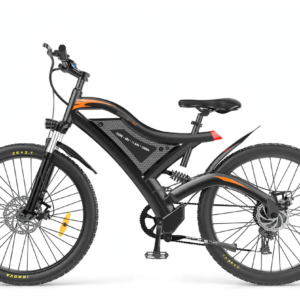

| Frame Design | Classic Curved Full Suspension Frame – 6061 Aluminum Alloy – As Seen Images: Curved Top Tube with Orange Flame ELECTRIC Logo – RC S Logo Cyan on Triangle Carbon Panel – Carbon Weave Texture Inside Triangle – Orange Stripe on Swingarm – Fenders Front+Rear |
| Model & Labels Seen | Image 1: AOSTIR S05 – 500W 48V 11.6Ah 500Wh on Triangle – 26×2.1 on Tire – INNOVA on Tire Yellow – Image 3 Battery Label: AOSTIR S05 Electric Mountain Bicycle Battery 500W 48V 11.6Ah 500Wh Lithium Battery Pack Li-ion Rechargeable |
| 2. MOTOR & PERFORMANCE | |
| Motor | 500W Brushless Rear Hub – 60Nm Torque – 48V – Rear Mounted |
| Speed | 28 MPH Throttle / 30 MPH PAS 5 – 5 PAS Levels – Thumb Throttle |
| Range | 25 Mile Throttle / 50 Mile PAS 1 with 48V 11.6Ah 500Wh – 35 Mile / 65 Mile with 15Ah Upgrade |
| Controller | 48V 22A Sine Wave – IPX5 |
| Climbing Ability | 25° Hill Climb – Suitable for Trail / City / Beach |
| 3. BATTERY & CHARGING – SEE IMAGE 3 LABEL | |
| Battery Specification | Rated: 48V 11.6Ah 500Wh – Nominal Voltage: 48V – Rated Capacity: 11.6Ah – Energy: 500Wh – Max Charging Voltage: 54.6V – Max Charging Current: 2A – Cycle Life: ≥800 cycles – Weight: 2.8kg – As Seen Label Image 3 |
| Cell Type | Lithium Battery Pack • Li-ion • Rechargeable – Samsung Cells 18650 – Config 13S4P – 500Wh |

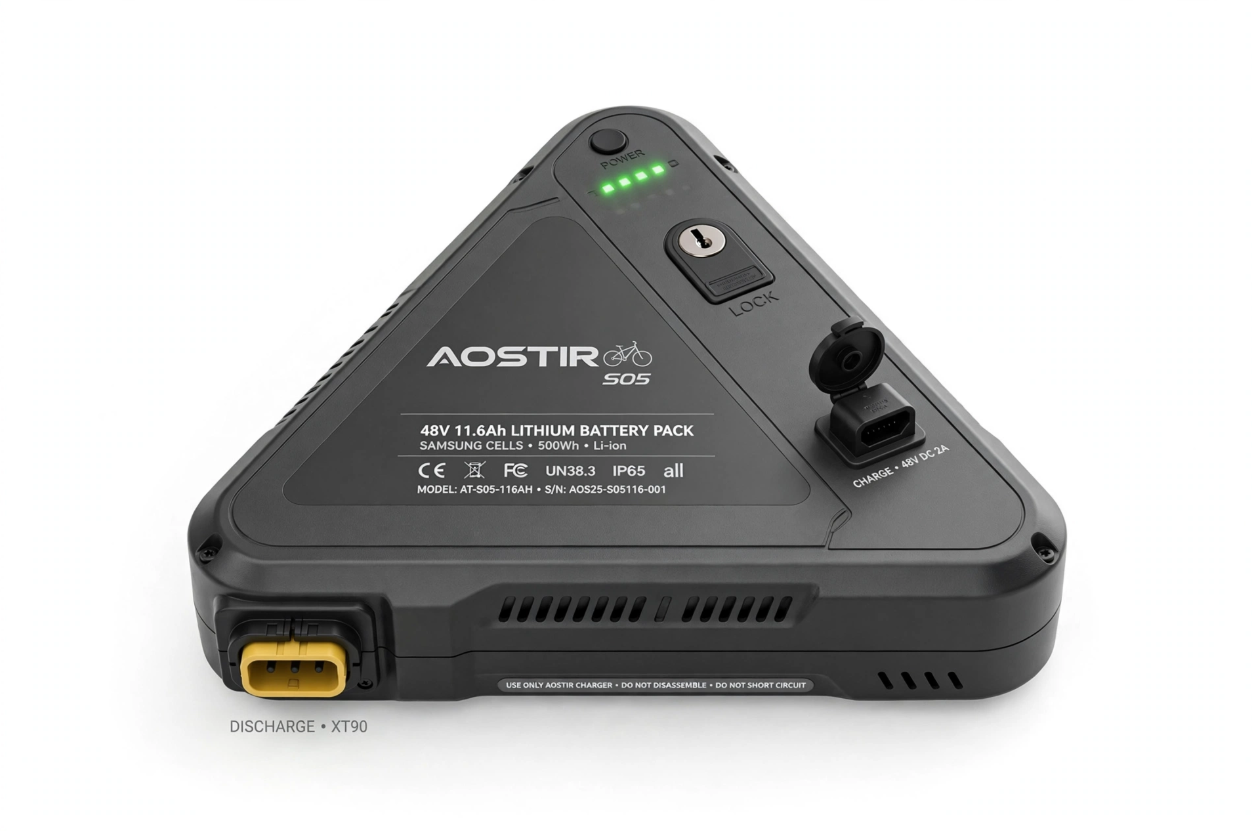

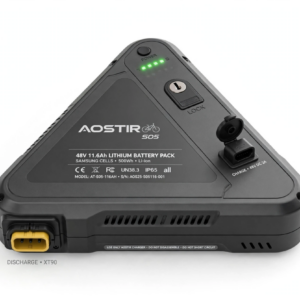

| Battery Features Seen | Image 3: POWER Button Black Top – LOCK Key with AOSTIR Logo Silver with Key – CHARGE Port with Twist Cover Right Side – CE / RoHS / UN38.3 / Recycling Icons – Model: AOSTIR-S05 – S/N: AS05B112460873 – Made in China – CAUTION: Do not disassemble, puncture, or short circuit. Use only with AOSTIR S05 designated charger. Keep away from fire and heat. Store at 20-25°C |
| Charging Time | 6 Hours with 54.6V 2A Charger Included – Charge On/Off Bike via Charge Port |
| BMS Protection | Built-in BMS – Over-Charge / Over-Discharge / Over-Current / Short / Temp / Balancing – IP65 Waterproof |
| 4. SUSPENSION & COMFORT | |

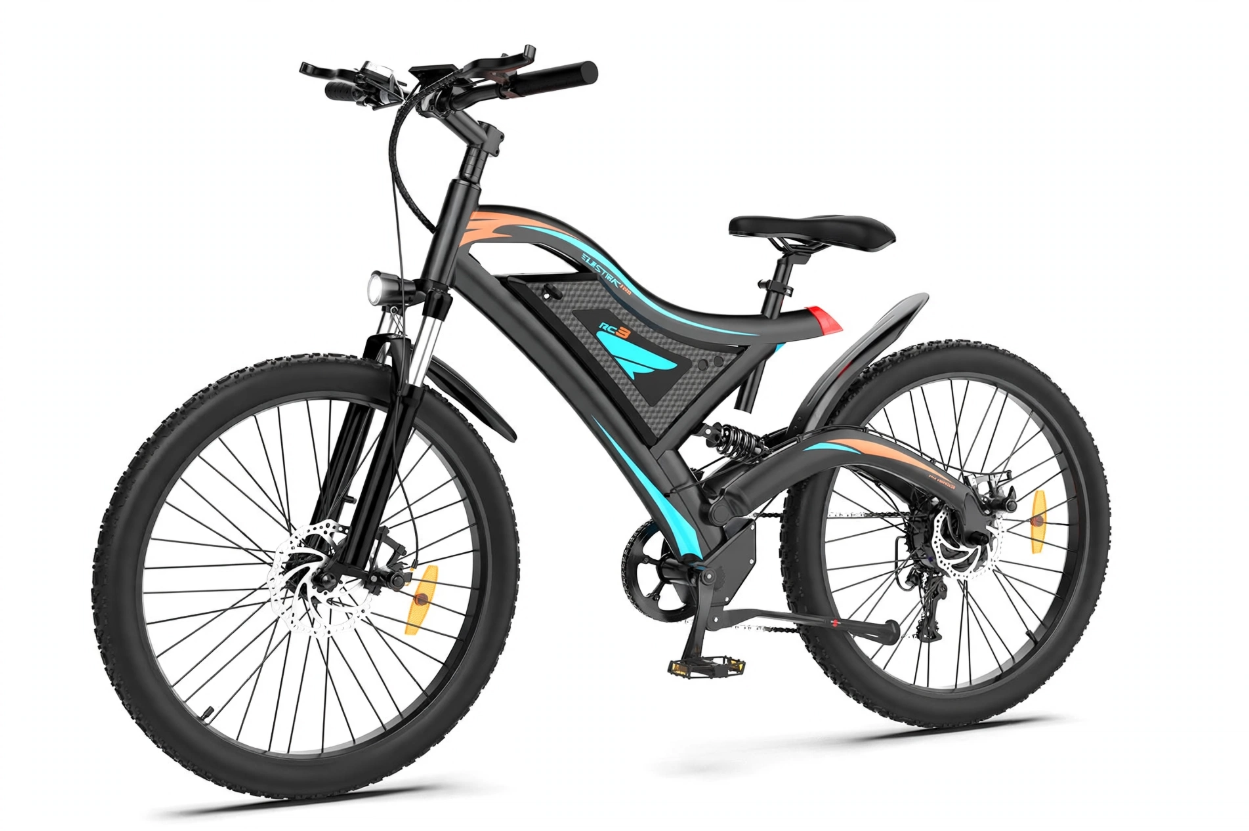

| Suspension | Full Suspension – Front: Suspension Fork 100mm Travel Silver Stanchions with Preload Adjustment As Seen Image 1 & 2 – Rear: Coil Shock Spring 40mm Travel Under Seat As Seen Between Frame and Swingarm – Total 140mm Travel |
| Comfort | MTB Saddle – Ergonomic Grips – Curved Frame Absorbs Shock – Ground Clearance 11″ |
| 5. WHEELS, TIRES, BRAKES & DRIVETRAIN | |
| Wheels & Tires | 26″ x 2.1″ INNOVA Tires As Seen Image 1 Yellow Lettering INNOVA & 26×2.1 – Also 27.5″ Option – Alloy Rims – Pressure 40-65 PSI – Knobby for Trail / City – Front Hub QR – Rear Hub Motor 500W – Spokes Stainless – Reflectors Orange As Seen |
| Brakes | Mechanical Disc 160mm Front/Rear – Silver Rotors As Seen Image 1 & 2 Large – Levers Alloy with Motor Cut-Off |
| Drivetrain | Shimano Tourney 21-Speed – 3×7 – Front Crank 42/34/24T – Rear Freewheel 14-28T 7-Speed – Front + Rear Derailleur Tourney – KMC Chain – As Seen Crank Silver |
| 6. COCKPIT, LIGHTS & ACCESSORIES | |
| Cockpit | Handlebar Flat Alloy 680mm – Stem 80mm – Grips Rubber – Seatpost Alloy 350mm – Pedals Platform Black – Display Small LCD Top As Seen Battery/Speed/PAS – Kickstand Alloy As Seen Under Chainstay |
| Lights & Safety | LED Headlight Round Silver on Fork Crown As Seen Image 2 – Tail Light Red Integrated on Seat Tube As Seen Image 1 Red – Reflectors Orange on Spokes As Seen Image 1 – Fenders Front+Rear Black Plastic As Seen |
| Weight & Load & Riders | Bike Weight 26kg / 57 lbs – Max Load 300 lbs / 136kg – Riders 5’4″ to 6’2″ – Assembly 85% – Box 30kg – Includes Charger + Tools + Manual |
Buy Now – AOSTIR S05 Electric Mountain Bicycle – 500W – 48V 11.6Ah 500Wh Samsung – 26×2.1 INNOVA – Full Suspension – 21-Speed – Disc 160mm – $899 Free Shipping
